ST230V

ST230V

SPECIFICATIONS

ST230V

Description
As a kind of compact earthmoving machinery, the compact track loader is nimble and able to pivot 360 degrees in place by utilizing the speed difference between the two side tracks. Benefiting from the design of quick couplers, different attachments can be attached in minutes to meet various demands in general construction, agriculture, utility, and landscaping.
PERFORMANCE
Rated Operating Capacity
1100 kg / 2430 lbs
Operating Weight
4680 kg / 10317 lbs
Tipping Load
3148 kg / 6943 lbs
Breakout Force, Tilt Cylinder
25.5 kN / 5733 lbf
Lift Geometry
Vertical Lift
Travel Speed One
8.0 km/h / 5.0 mph
Travel Speed Two
13.2 km/h / 8.0 mph
Cycle Time (Raise/Lower/Dump)
9.0 s
Track Width
320 mm / 12.6 in
POWER SYSTEM
Engine Model
YANMAR 4TNV98CT
Engine Speed
2400 rpm
Rated Power
53.7 kW / 73 hp
Peak Torque
280 N.m @1560 rpm
Displacement
3.319 L / 203 in3
Bore x Stroke
Ф98x110 mm / 3.9x4.3 in
Aspiration
Turbo-charger
Emissions
Tier 4 Final / Stage V
MACHINE DIMENSIONS
Maximum Overall Height
3965 mm / 156.1 in
Bucket Pin Height at Maximum Lift
3060 mm / 120.5 in
Clearance at Maximum Lift and Dump
2340 mm / 92.1 in
Reach at Maximum Lift and Dump
1065 mm / 41.9 in
Ground Clearance
230 mm / 9.1 in
Track Length On Ground
1460 mm / 57.5 in
Bumper Overhang behind Rear Axle
883 mm / 34.8 in
Turning Radius from Center-Bucket
2100 mm / 82.7 in
Turning Radius from Center-Machine Rear
1685 mm / 66.3 in
Maximum Dump Angle
40°
Rollback Angle of Bucket on Ground
30°
Departure Angle
28°
Length without Bucket
2885 mm / 113.6 in
Length with Bucket on Ground
3610 mm / 142.1 in
Over the Tire Width
1675 mm / 65.9 in
Over the Bucket Width
1727 mm / 68 in
Height to Top of Cab
2100 mm / 82.7 in

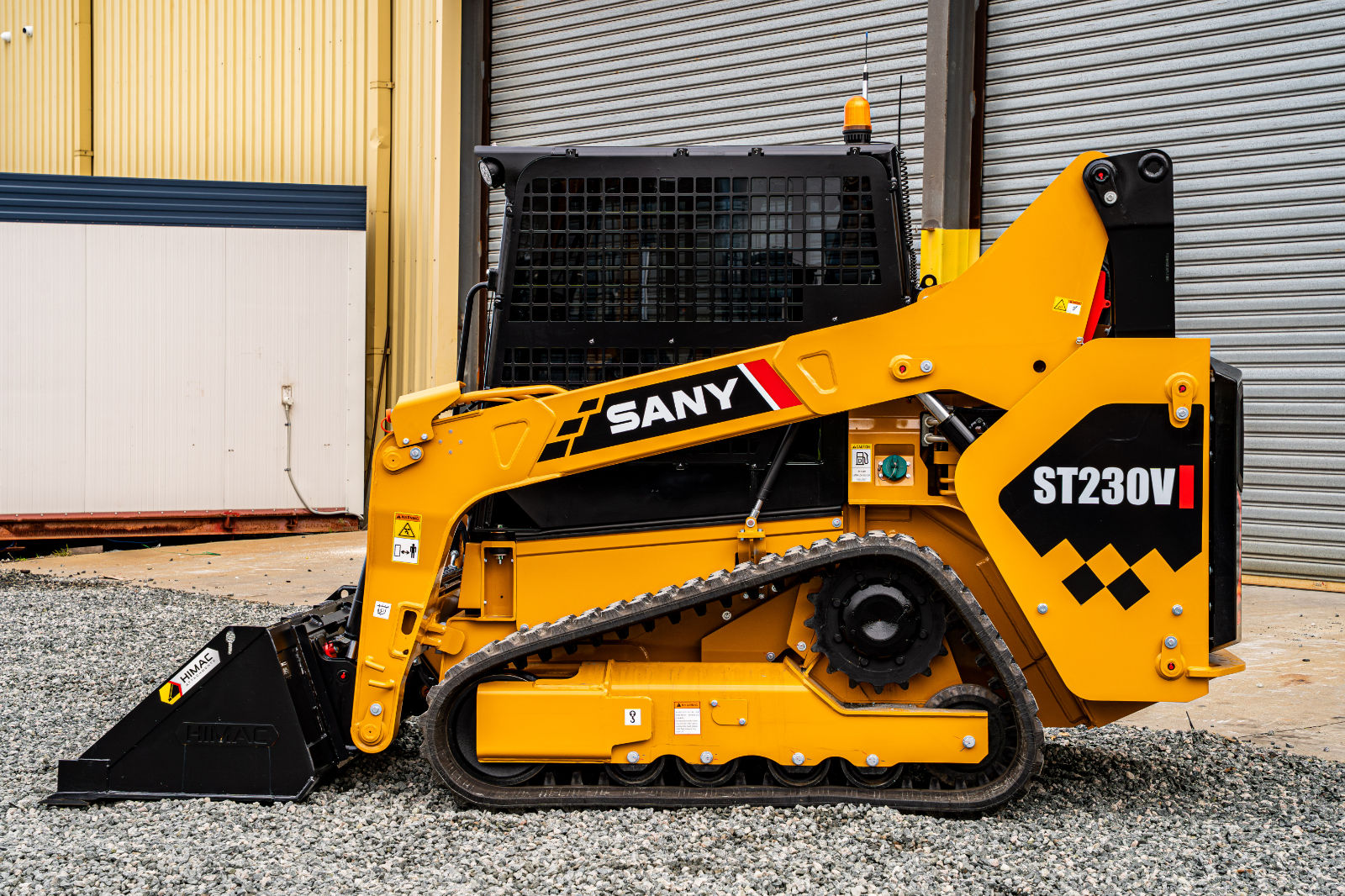

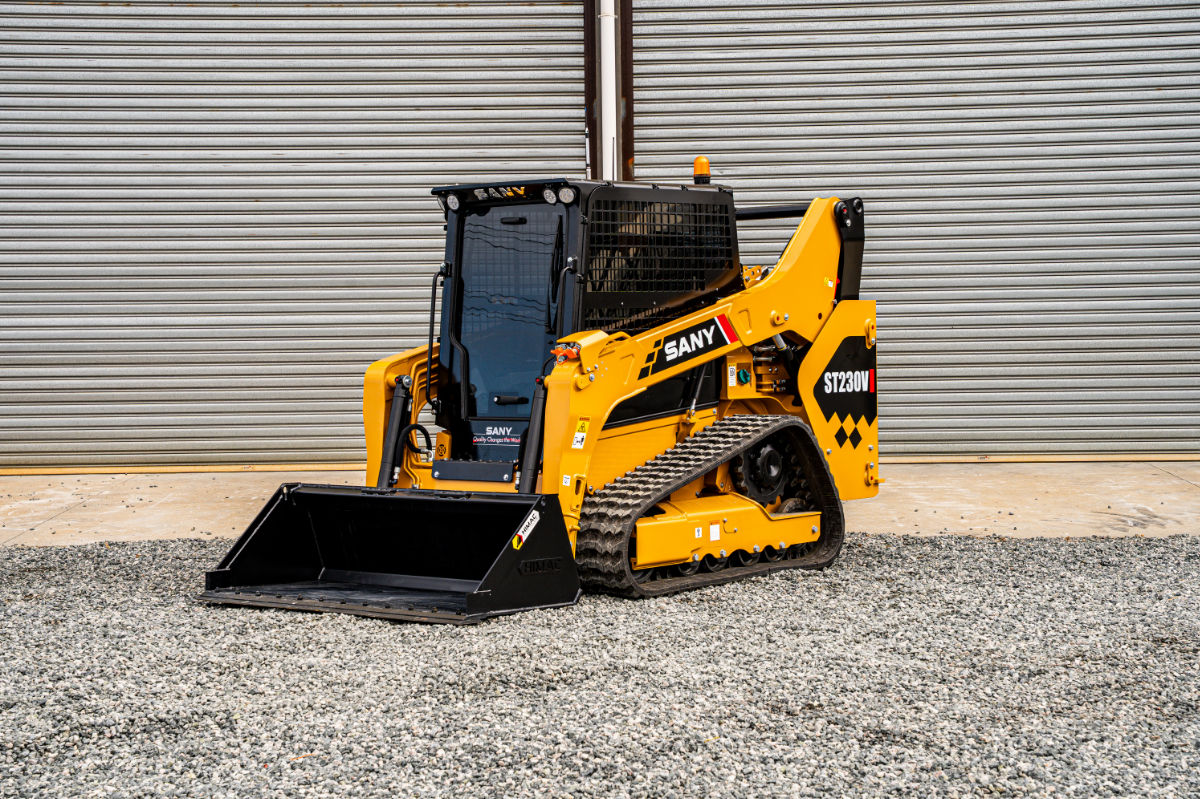

The ST230V is SANY’s latest compact track loader, designed for all-terrain control, tool flexibility, and durability under pressure. It includes:

  • 360-degree pivoting via independent track drive for tight site work
  • Quick coupler system for fast attachment changeovers
  • 1,100 kg rated load with 4,680 kg operating weight
  • Turbocharged Yanmar 4TNV98CT engine, 53.7 kW at 2400 rpm

The ST230V’s vertical lift design boosts loading height without compromising stability. It’s also engineered for comfort and uptime:

  • Fully enclosed cab with excellent visibility and operator-focused controls
  • Over 3,000 hours of durability testing on SANY’s excavator-grade platform
  • 13.2 km/h top speed with dual travel modes for site and transit
  • Accessible service points and streamlined maintenance layout

Other performance-ready features on the ST230V include:

  • 25.5 kN breakout force from tilt cylinder
  • 40° maximum dump angle for fast emptying
  • Tier 4 Final / Stage V emissions compliance
  • Compact frame with 230 mm ground clearance and 320 mm wide tracks
