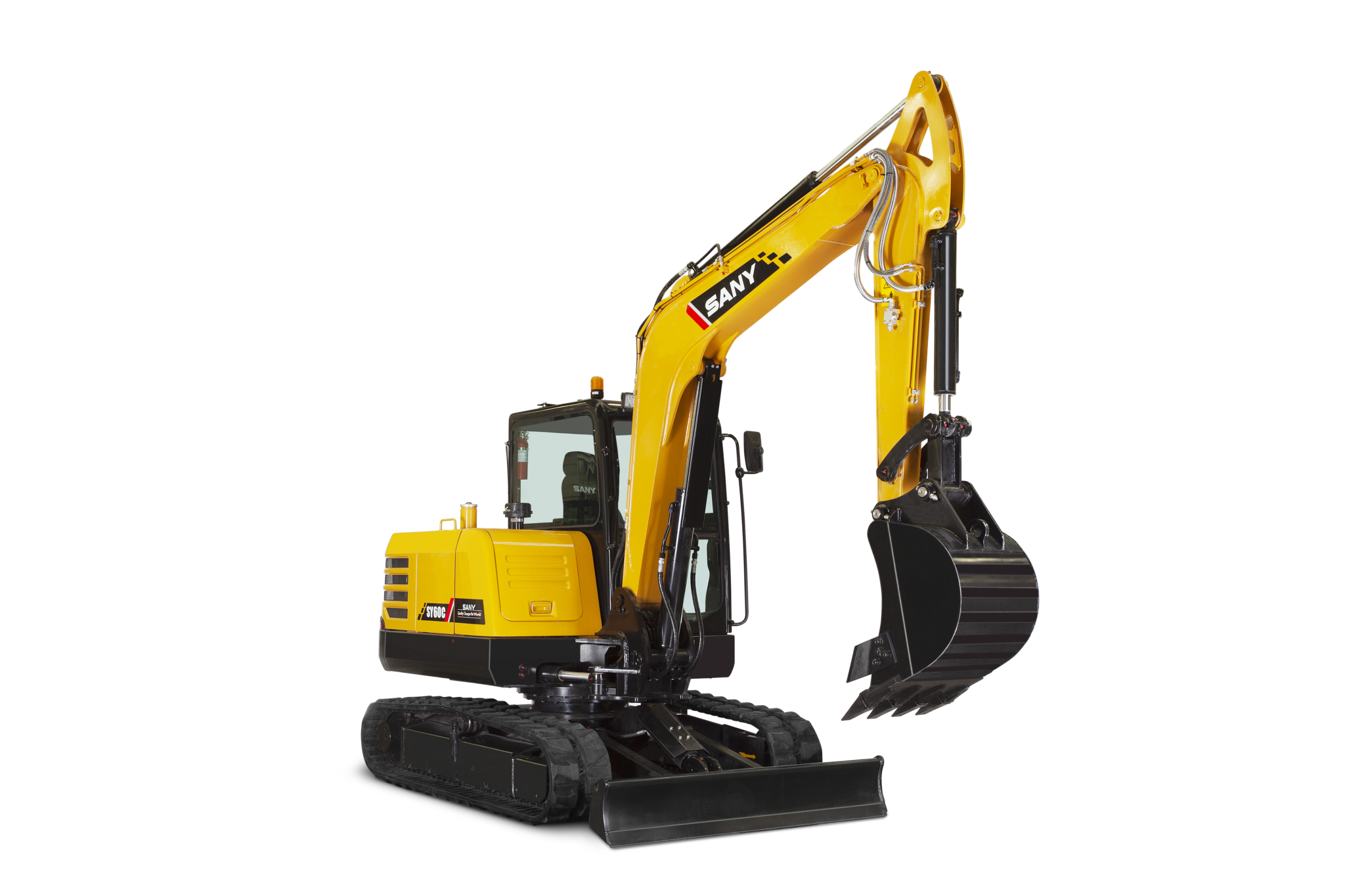

SY60C

SY60C

SPECIFICATIONS

SY60C

Description
ENGINE MODEL: YANMAR 4TNV98C OPERATING WEIGHT: 6000KG/6t. RATED POWER: 42.4KW/2000RPM
Displacement
2,615 L
Engine model
Yanmar tier 4 (4TNV98C)
Rated power
42.4kW/2000rpm
OPERATION RANGE
Height at min. swing radius
4495 mm
Max. depth of blade down
380 mm
Max. digging depth
3950 mm
Max. digging height
5790 mm
Max. digging reach
6320 mm
Max. dumping height
4060 mm
Max. excavating distance
6320mm
Max. ground clearance of blade up
330 mm
Max. vertical digging depth
3180 mm
Min. swing radius
2555 mm
Operating weight
6000 kg
DIMENSIONS
Blade height
340 mm
Min. ground clearance
330 mm
Tail swing radius
1640 mm
Track length
2545 mm
Transport height
2645mm/8’8”
Transport length
6015mm/19’9”
Transport width
2005mm/6’7”
Upper width
1860 mm
UNDERCARRIAGE/WORKING DEVICE
Arm length
1700 mm
Boom length
3000 mm
Roller gauge
1600 mm
Track gauge
1600 mm
Track width
400 mm
PERFORMANCE
Arm digging force
33 kN
Bucket digging force
45 kN
Cooling system
5.6L/1.5gal
Engine oil
9.6L/2.5gal
Fuel tank capacity
130L/34.3gal
Gradeability
35°
Ground pressure
37.5 kPa
Hydraulic tank capacity
85 L
Swing speed
9.6 rpm
Travel speed
2.4/3.7 km/h
HYDRAULIC SYSTEM
Hydraulic motors – swing
9.6 rpm
Main pump – maximum flow
142.7 L/min
  • The SLSS hydraulic system developed by an international team ensures precise operation and energy conservation.



  • Extra reinforcements in the boom, arm, swing platform and undercarriage increase stability and service life.



  • Easily accessible service points and a detachable radiator screen are among the features that make scheduled maintenance more convenient.
