SY215E

SY215E

SPECIFICATIONS

SY215E

Description

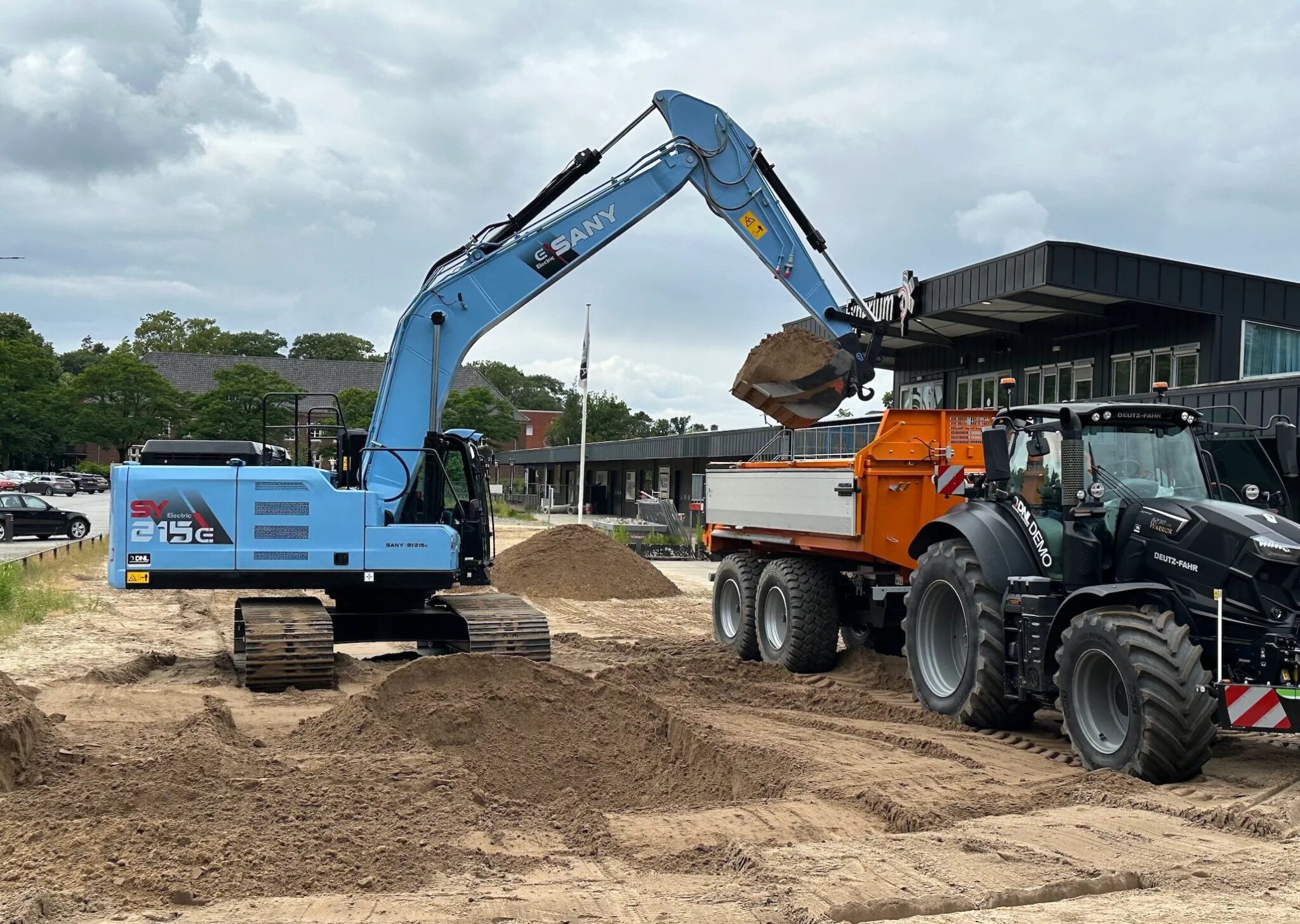

ENGINE MODEL: PERMANENT MAGNET SYNCHRONOUS MOTOR OPERATING WEIGHT: 22000KG/22t. RATED POWER: 150KW/1800RPM SY215E is a new 21T electric earth-moving excavator manufactured by SANY Heavy Machinery, designed for earth-moving conditions and stonework. Suitable for tunnel construction, steel mills, municipal engineering and other work scenarios. Energy saving and environmental protection to improve customer return on investment is the SY215E’s goal.
PERFORMANCE PARAMETERS
Working Weight
22,000kg
Bucket Face
1.1m3 (0.8-1.2)
Rated storage energy
422kWh
Comprehensive battery life
6~10h
Motor
Permanent magnet synchronous AC motor
Rated power
150kw/1800rpm
Walking speed high/low
5.4/3.3 km/h
Rotation speed
12.5 rpm
Traction
220KN
Climbing ability
70% (35°)
Bucket digging power
138KN
Stick digging force
103KN
WORKING AREA
Max. digging height
9600 mm
Max unloading height
6730 mm
Max digging depth
6255 mm
Max digging distance
10280 mm
Min radius of rotation
3730 mm
Max height for minimum turn radius
7680 mm
Tail swing radius
3125 mm
Min. ground clearance
440 mm
DIMENSIONS
Total Length
9910 mm
Total Width
2980 mm
Upper Width
2875 mm
Overall Height (Transport)
3440 mm
Overall Height (Cab Top)
3075 mm
Standard track shoe width
600 mm
Track ground length
3445 mm
Track Length
4250 mm
Gage
2380 mm
  • Zero emissions
  • Maintenance saving costs
  • Large colour touchscreen display
  • Charge Time: 1.5h
  • Operating time: 6-10h



SAFE AND SECURE

Utilising a multi-tier high-voltage safety

configuration to safeguard operator well-being; incorporating safeguards for the cabin, hydraulic cylinders, and enhanced working equipment, along with an intelligent thermal management system; all to guarantee the dependability of batteries, motors, electronic controls, and hydraulic systems.



ENERGY SAVING AND ENVIRONMENTAL PROTECTION

Driven by a permanent magnet synchronous motor and exclusively powered by batteries, this machine operates emission-free, produces minimal noise, and offers excellent driving comfort. It is well-suited for various challenging environments such as tunnels, steel mills, and potentially hazardous conditions. What’s more, its annual comprehensive operating cost is approximately 58% lower than that of conventional diesel engines.



EASE OF USE

The three-electric system utilises globally renowned brands and requires no maintenance. It features high-power double-gun fast charging, with just 1.5 hours needed for a full charge, providing a battery life of 6 to 10 hours.
