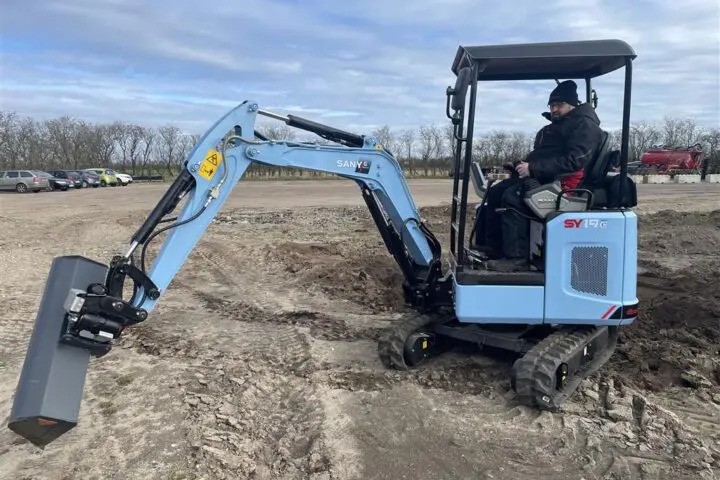

SY19E Electric Excavator

SY19E Electric Excavator

SPECIFICATIONS

SY19E Electric Excavator

Description
The SY19E represents SANY’s inaugural series of mini electric excavators, embodying features of high efficiency, energy conservation, environmental protection via advanced technologies, safety, reliability, and durability. Moreover, it offers diverse special configuration site options, catering to the varied requirements of each customer. ENGINE MODEL: PERMANENT MAGNET, SYNCHRONOUS MOTOR OPERATING WEIGHT: 1950KG/1.95t. RATED POWER: 15KW/2000RPM
PERFORMANCE PARAMETERS
Working Weight
1950kg
Bucket Capacity
0.04m3
Electromotor
Permanent magnet synchronisation
Weight of motor
26kg
Rated power
10 kW/2000 rpm
Peak power
15 kW
Nominal torque
44 Nm
Power battery
Lithium iron phosphate
Reference voltage
358 V
Standard capacity
67 A/h
Total energy
24 kW/h
Travelling speed (high and low)
3.2/2.3 (km/h)
Slewing speed
10 r/min
Gradeability
50.6°
Ground pressure
0.028 mPa
Bucket digging force
15.2 kN
Digging force of bucket bar
9.2 kN
Main pump delivery
30 mL/r
Maximum system flow
90 L/min
Main relief valve pressure
24.5 mpa
Overload working pressure
27 mpa
WORKING AREA
Max digging height
3665 mm
Max unloading height
2635 mm
Max digging depth
2360 mm
Max vertical digging depth
2215 mm
Max digging radius
4000 mm
Min slewing radius
1655 mm
Max height at min slewing radius
2745mm
Max lift height of shovel bucket
310 mm
Max sinking depth of shovel bucket
320 mm
DIMENSIONS
Total length (during transport)
3624 mm
Total width
980 / 1350 mm
Total height (during transport)
2440 mm
Width of cab
980 mm
Shovel bucket height
270 mm
Min ground clearance
160 mm
Tail slewing radius
1225 mm
Grounding length of track
1225 mm
Track length
1585 mm
Track width
230 mm
Track gauge
750 / 1120 mm
Number of track chain plates
2
Track rollers on each side
3
  • Quiet environmental protection: zero emission, low noise.
  • Fast charging: minimum charging time < 1 hour, 3-7 hours of battery life.
  • Convenient charging: Support DC charging pile, mobile charging bank, industrial power, civil power and other charging modes.
  • Safe and reliable



THE CORE CONFIGURATION IS ENERGY EFFICIENT

High power motor – Customized permanent magnet synchronous motor, with high power density, high efficiency, safety and reliability, low energy consumption characteristics.

High performance battery – High performance lithium-ion batteries have the advantages of high energy density, safety and reliability, and intelligent fault diagnosis.

Integrated controller – The SY19E is equipped with a customized all-in-one integrated controller and uses a high degree of circuit integration to realize electric drive MCU functions, three-phase AC charging OBC functions, low-voltage power supply DCDC functions, and high-voltage system PDU functions. It also has vehicle control VCU functions. All of these are within a compact and highly integrated form factor.



COMFORTABLE DRIVING

The seat depth of the new seat cushion is adjustable, and the mechanical lumbar support enhance overall seating comfort.

The new 7″ touch screen, seamlessly integrating Bluetooth, air conditioning, and various other functions, represents a harmonious fusion of cutting-edge technologies and intelligent features.

Intelligence – New 7″ display, real-time display of battery power and water temperature, integrated key operation panel, one-key start, fault self-diagnosis and other intelligent configurations.

Quiet and comfortable – Cab noise is reduced to 66 decibels, eliminating excess noise interference.

Seat upgrade – The driver’s seat features a 680mm high backrest with front and rear adjustments, providing ample room for operation to ensure a more comfortable driving experience.



ADVANCED ENERGY SAVING TECHNOLOGY

Advanced SLSS hydraulic system – Precise flow control according to load changes, excellent microoperation performance.

Intelligent thermal management system – Equipped with multi-stage high-power electronic fan, hydraulic oil radiator – electronic coolant radiator series arrangement, independent temperature control – thermal management controller. The electric motor incorporates a series circulation liquid cooling system, ensuring efficient heat dissipation and reducing energy consumption by 30%.

Boom and arm – Boom and arm are strong and durable, with performance surpassing the industry standard.



MAINTENANCE AND SERVICE

Smart and convenient charging – Compatible with DC charging piles, industrial electricity, civil electricity, charging vehicles and other charging modes, ensuring convenient and flexible charging.

Low maintenance cost – Pure electric power, energy consumption is more than 50% lower than diesel engines, saving costs, while protecting the environment.
