SY16C

SY16C

SPECIFICATIONS

SY16C

Description

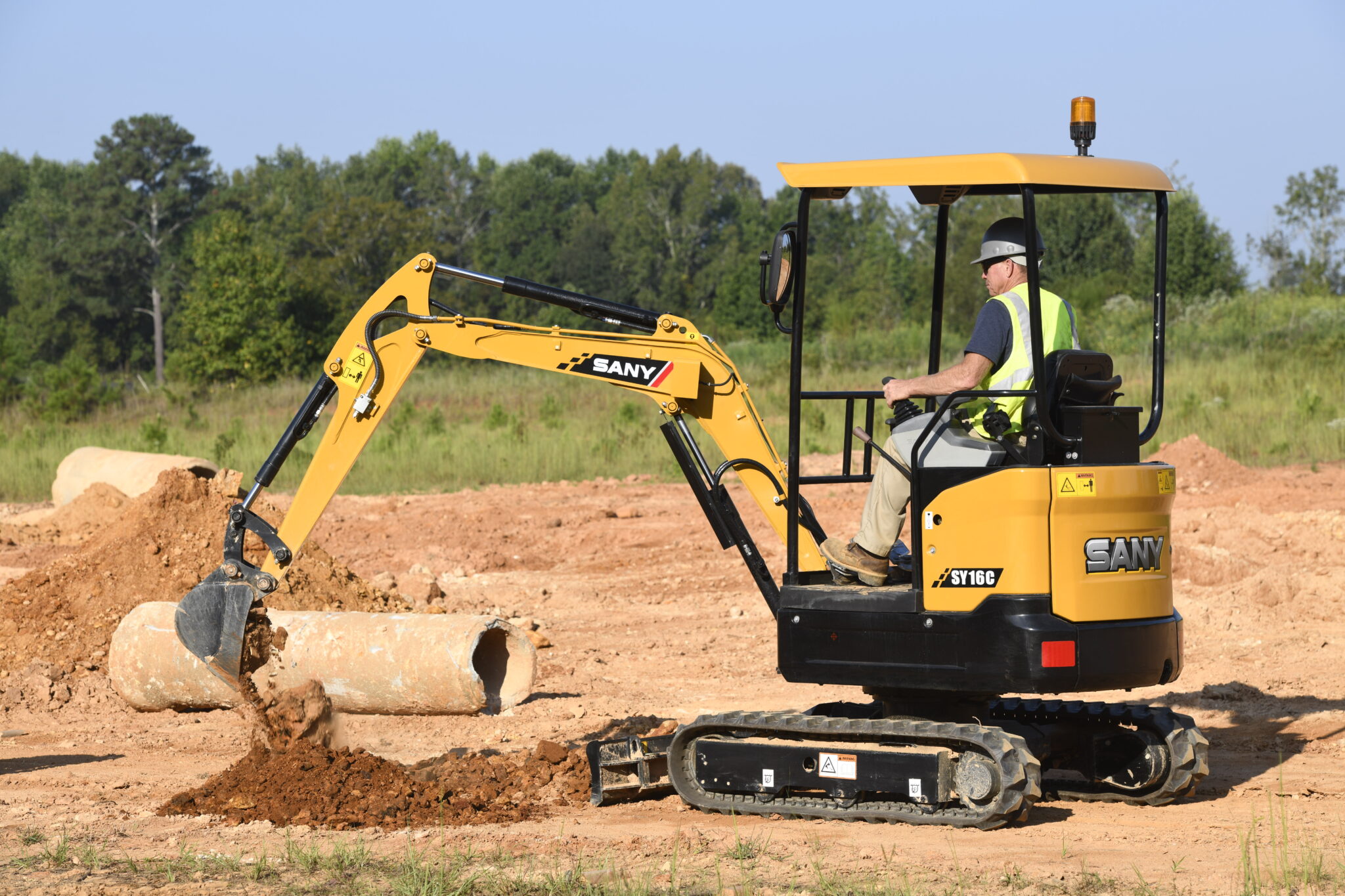

ENGINE MODEL: YANMAR 3TNV80F OPERATING WEIGHT: 1825KG/1.825t. RATED POWER: 14.6KW/2400RPM With an upper width of only 980 mm, the SANY SY16C can easily drive through narrow passages and spaces, especially with the 1825kg weight, making transportation more easily between different sites. The short tail swing is also ideal for tight job sites and confined spaces.
Displacement
0.993 L
Engine model
Yanmar 3TNV80F
Rated power
14.6kW/2400rpm
OPERATION RANGE
Height at min. swing radius
2745 mm
Max. depth of blade down
320 mm
Max. digging depth
2360 mm
Max. digging height
3665 mm
Max. digging reach
4000 mm
Max. dumping height
2635 mm
Max. excavating distance
4000 mm
Max. ground clearance of blade up
310 mm
Max. vertical digging depth
2215 mm
Min. swing radius
1655 mm
Operating weight
1825 kg
DIMENSIONS
Blade height
270 mm
Cab height
470 mm
Min. ground clearance
180 mm
Tail swing radius
920 mm
Track length
1585 mm
Transport height
2420 m
Transport length
3575 mm
Transport width
980/1350 mm
Upper width
980 mm
UNDERCARRIAGE/WORKING DEVICE
Arm length
1130 mm
Boom length
1810 mm
Bucket capacity
0.04 m³
Roller gauge
1220 mm
Track gauge
750/1120 mm
Track width
230 mm
PERFORMANCE
Arm digging force
9.2 kN
Bucket digging force
15.2 kN
Cooling system
3.8 L
Engine oil
2.0 L
Fuel tank capacity
23 L
Gradeability
30°
Ground pressure
29.1 kPa
Hydraulic tank capacity
21
Swing speed
10rpm
Travel speed
3.7/2.1 km/h
HYDRAULIC SYSTEM
Hydraulic motors – swing
10 rpm
Hydraulic motors – travel
2.1/3.7 km/h
Main pump – maximum flow
48 lpm

COMPACT DIMENSIONS
With an upper width of only 980 mm, the SANY SY16C can easily drive through narrow passages and spaces, especially with the 1820 kg weight, making the transportation more easily between different sites. The short tail swing is also ideal for tight job sites and confined spaces.
Extendable Undercarriage and adjustable front blade
The hydraulically extendable undercarriage with adjustable front blade allows the machine to be configured for excellent working stability and optimum performance.

PERFORMANCE AND DURABILITY
Powerful Engine and Hydraulics
Owing to the self-independent SLSS hydraulic system, the 11.2 kW Yanmar engine and perfectly matched hydraulic pump, main valve and travel motor provide efficient and reliable performance, even in the toughest job sites. Low noise and vibration levels deliver comfortable operation.
Auxiliary lines
The auxiliary lines are run down the boom and arm as standard equipment for easy fit-up and running of hydraulic attachments.
Load sensing hydraulics
The matched load sensing hydraulics is designed for increased fuel efficiency and maximized performance.
ANSYS Platform for prolonging the usage life
Based on the ANSYS platform, the strengthened working devices and undercarriage eases the stress of concentration, making the using life prolong by 30%.

USER FRIENDLY OPERATION
The exchanges of steel track and rubber track make it accessible on the highroad, and suit various working environment.
Rotary arm
The working configuration of the arm ranges from 595 mm of left turn and 350 mm of right turn, making the outer edge of the track could be reached, ideal for the job in compact space like edge or corner of walls.
Convenient maintenance
The tail end of the machine is mainly designed for the daily maintenance, to make it easily accessible to the air filter and fuel oil filter, facilitating the maintaining job.
